TR Cobot
The ideal companion for welding processes
The Fanuc CRX series collaborative robots, integrated into Tecnorobot systems, represent a cutting-edge and industry-leading solution in collaborative welding sector.
“A WORLD WHERE OPERATORS WORK TOGETHER WITH COBOTS.”
In this way, Cobots can perform the repetitive and strenuous tasks, allowing operators to focus on less demanding, more specialized, and rewarding activities.
Integrated into existing production environments, Cobots collaborate directly with operators, becoming an integral part of the team.
ADVANTAGES
OF WELDING WITH
THE TR COBOT
Time
Costs
01. SAVINGS
| Welding Process | MIG | MAG | ||
| Welding wire | SOLID WIRE 1.2mm | ||
| Material | S 235 | ||
| Shoulder thickness | 15 MM | ||
| Tube thickness | 4 MM | ||
| Position | PB | ||
| Number of pieces/day | 300 | ||
| Production hours | 8 |
| WORK CYCLE | MANUAL | TRCOBOT | |
|---|---|---|---|
| Voltage (Volts) | 26 | 26 | |
| Amperage (Amperes) | 240 | 240 | |
| Welding length (mm) | 400 | 400 | |
| Welding speed (mm) | 6 | 6 | |
| Number of welds | 4 | 4 | |
| Access Arc Time (sec) | 267 | 267 | |
| Efficiency (%) | 35 | 75 | |
| Total Welding Time with Efficiency (sec) | 762 | 356 | |
| Hourly Cost Qualified Welder (€/h) | 42 | 30 | |
| Number of pieces per hour | 4,725 | 10,13 | |
| Total piece cost (€) | 8,89 | 2,96 | |
02. PROGRAMMING
The new DRAG & DROP Cobot programming mode via tablet – with a 12″ touch screen display – is an intuitive and simple tool that can be used by all operators, even the less experienced.
The electrical components, completely developed and assembled in Italy, is fully comply with CE marking requirements. The laser device is in complete alignment with the specifications defined by Class 4 of the IEC 60825 standard.
03. QUALITY
Thanks to the repeatability guaranteed by the robot, the quality of the weld remains constant over time.
04. SECURITY

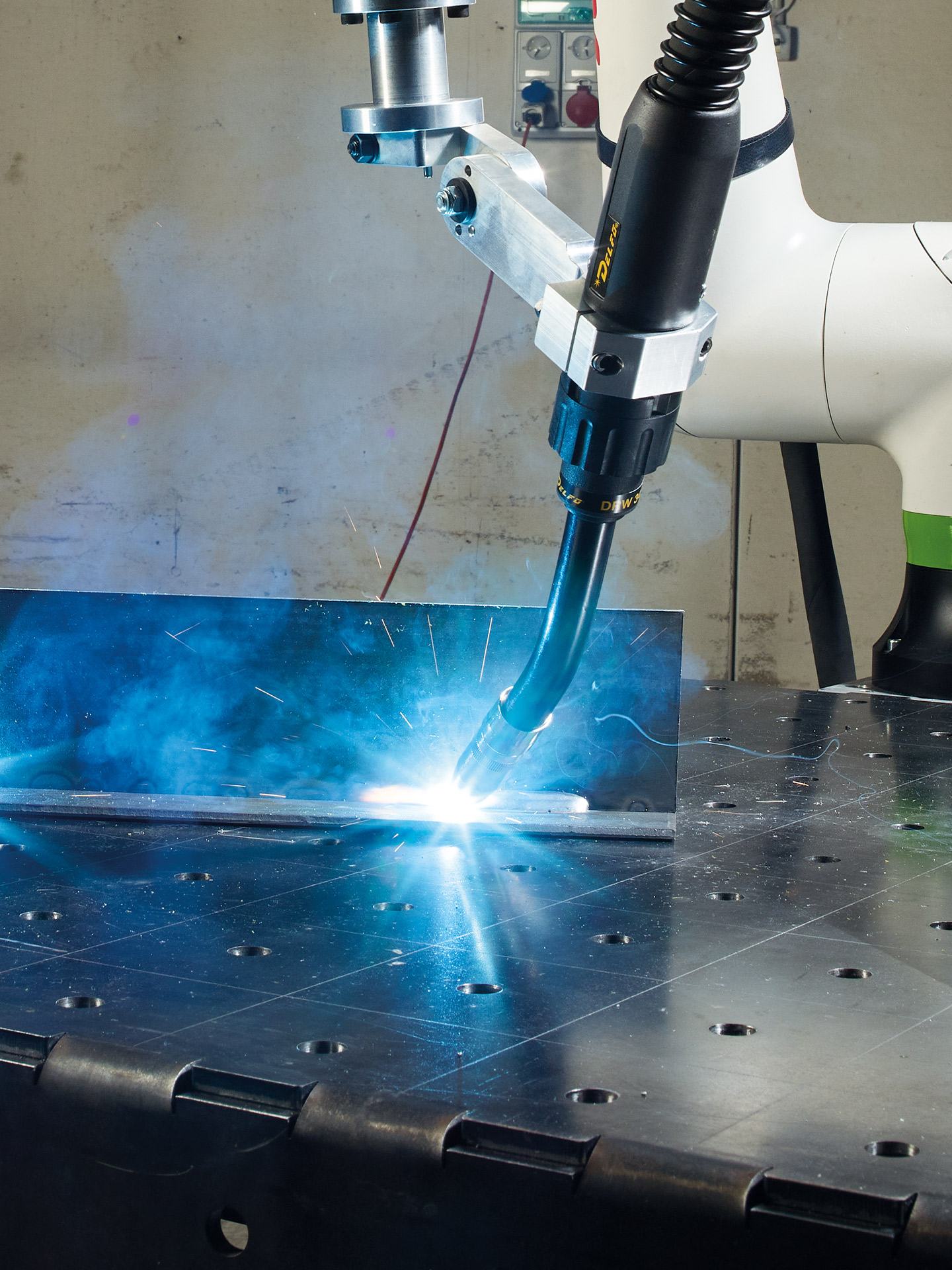

Highly sensitive sensors allow for the immediate activation of a safety stop in case of contact with an obstacle. This function is certified according to the ISO10218-1 standard (including ISO/TS15066).
The electrical components, completely developed and assembled in Italy, is fully comply with CE marking requirements. The laser device is in complete alignment with the specifications defined by Class 4 of the IEC 60825 standard.
05. FLEXIBILITY
In particular, the CRX-10iA/L collaborative robot has a payload capacity of 10 kg, a reach of 1,418 mm and a unique tilting movement.

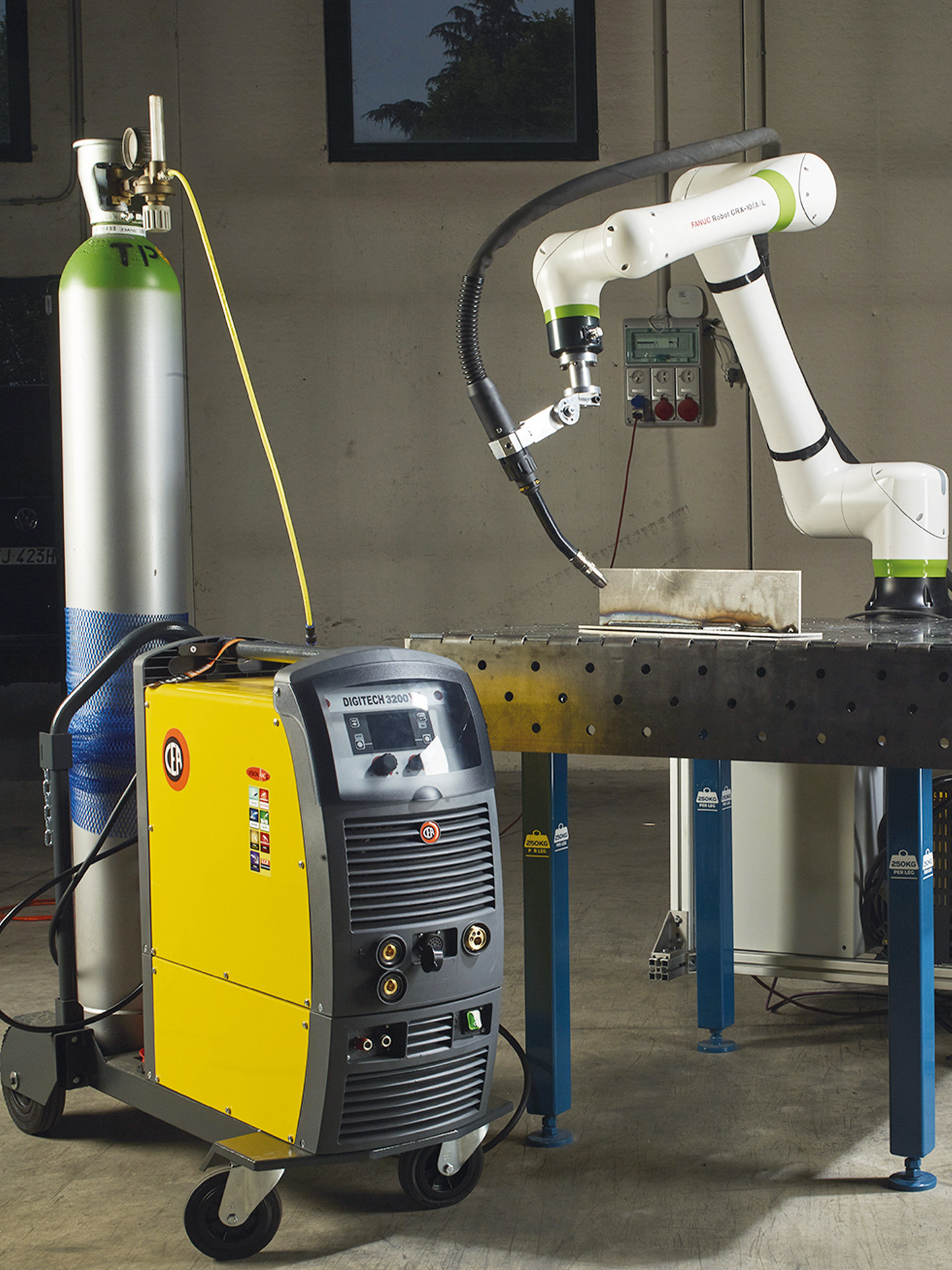

The lightweight and compact design of the TR Cobot allows for easy integration into any work area or existing system, without the need for cranes or lifting devices. All these advantages help businesses reduce costs, save valuable space, and improve profits.
WELDING GROUP
Available processes for
MIG-MAG welding with CEA setup.
MIG-MAG welding with CEA setup.
MIG | MAG
Vision. PIPE
Vision. POWER
Vision. ULTRASPEED
Vision. COLD
TECHNICAL FEATURES
| TECNOROBOT DIGITECH VP2 | 3200 | 4000 | 5000 | |
|---|---|---|---|---|
| TECHNICAL DATA | ||||
| Power factor / cos φ | 0,62/0,99 | 0,66/0,99 | 0,66/0,99 | |
| Performance | 0,82 | 0,85 | 0,85 | |
| Open-circuit secondary voltage | V | 62 | 70 | 70 |
| Adjustment range | A | 10-330 | 10-400 | 10-500 |
| Usable current at (40°) | A 100% | 280 | 350 | 380 |
| A 60% | 300 | 400 | 460 | |
| A x % | 330 (40%) | 500 (50%) | ||
All TR COBOT configurations can be set up for Mig-Mag and Tig welding.
LAYOUT OPTIONS
Service
We offer a complete and responsive after-sales service, guaranteeing qualified technical assistance, maintenance and continuous support to optimize the performance of your robotic systems and ensure maximum operational efficiency.
